Eliminate Wrinkles, Prevent Web Creasing, and Master Web Control on High-Speed Paper Processing Lines.
At Siva Rollers, we engineer custom, heavy-duty Bowed Rollers (also widely recognized as Expander Bowed Rollers or Banana Rollers) engineered specifically to solve the toughest web-handling challenges in modern paper manufacturing, slitting, converting, and coating processes.
Whether you operate a high-speed kraft paper mill, fine printing paper production facility, tissue converter, or corrugated board line, our Bow Rollers for Paper Industry applications deliver smooth, tension-balanced, and 100% crease-free web movement at maximum operational speeds.
Key Operational Highlights at a Glance
- 100% Wrinkle & Crease Removal: Outward spreading force eliminates center bagging, slack edges, and overlaps.
- Custom-Engineered Curvature: Curved shafts mathematically calibrated for your specific paper GSM, web width, and line speed.
- Dynamic Vibration-Free Balancing: Balanced for ultra-smooth operation on high-speed paper machinery up to 1500+ m/min.
- Environment-Sealed Bearings: Heavy-duty, double-shielded internal bearing assemblies protected against moisture, pulp dust, and heat.
- Versatile Surface Coatings: High-grade rubber covers (EPDM, Nitrile, Silicone, Neoprene), hard chrome metallic sleeves, or Teflon segmented covers.
- Direct Manufacturer Pricing & Support: Built in India by Siva Rollers (Siva Engineering Works) and trusted globally by top paper mills and OEMs.
The Critical Role of Bowed Rollers in Paper Production
In the paper manufacturing process, paper webs are continuously exposed to varying moisture levels, temperature changes, high tension, and compression forces. As the web travels through forming wires, press felts, dryer cans, and calendar rolls, unequal stress across the sheet width causes localized slackness, diagonal creases, and longitudinal wrinkles.

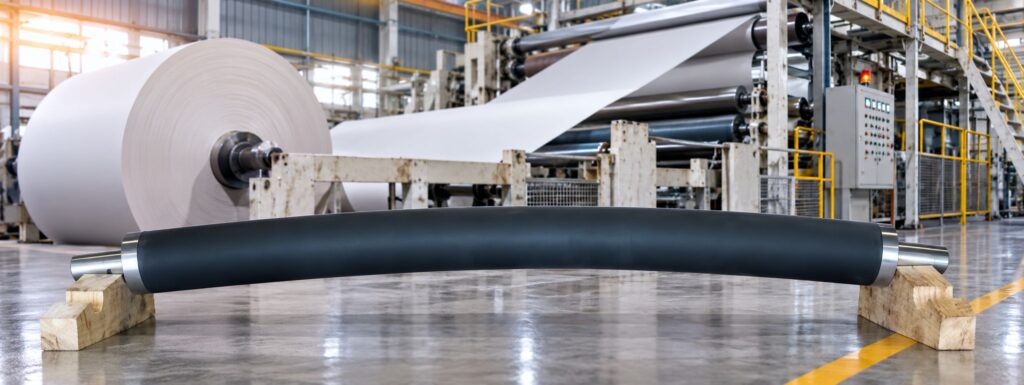

A Bowed Roller (also widely referred to as a Banana Roller or Expander Bowed Roller) is a curved roll designed to generate outward lateral spreading forces across the paper web. As the paper wraps around the curved stationary axle, the rotating outer sleeve stretches the paper evenly from the center toward both outer edges. This lateral movement removes sags, neutralizes tension variations, and keeps the sheet flat and stable.
At Siva Rollers, we engineer Bow Rollers for Paper Industry applications with exact bow curvature, precision bearing spacing, and resilient surface coverings. Our rollers ensure your paper web enters slitters, presses, coaters, and winders in perfect alignment—maximizing machine uptime and yield.
Common Paper Processing Problems Solved by Siva Rollers
Many paper mills struggle with recurring material defects that stem from substandard or worn-out spreader rolls. Below are the core operational bottlenecks that Siva Rollers’ precision-built Bowed Rollers directly resolve on your production floor:
+-----------------------------------------------------------------------------------+
| COMMON WEB DEFECTS SOLVED |
+------------------------------------+----------------------------------------------+
| Web Problem | How Siva Rollers Solves It |
+------------------------------------+----------------------------------------------+
| Wrinkles & Longitudinal Creases | Outward arc spreading stretches paper evenly |
| Web Overlapping in Slitting | Keeps slit reels cleanly separated |
| Baggy Centers & Slack Edges | Rebalances tension profile across the width |
| Coating & Sizing Streaks | Provides smooth, flat surface contact |
| Bearing Seizure & Pulp Dust Lockup | Multi-sealed bearing assemblies block debris |
| High-Speed Vibration & Wobble | Precision dynamic balancing ensures stability|
+------------------------------------+----------------------------------------------+Problem 1: Persistent Web Wrinkling and Baggy Centers
Variations in moisture content, raw pulp density, or uneven drying can cause paper webs to develop baggy centers or loose edges. When these uneven zones hit a straight roll, they collapse into permanent longitudinal wrinkles.
- The Siva Rollers Solution: Our Bowed Rollers exert progressive outward tension that gently pulls the slack paper toward the outer edges, flattening out baggy centers without stretching or tearing delicate paper sheets.
Problem 2: Interleaving and Interlocking During Slitter-Rewinding
During high-speed slitting operations, narrow paper strips tend to drift laterally, leading to overlapping, interleaved rolls, or dangerous web edge collisions during rewinding.
- The Siva Rollers Solution: Positioned immediately after the slitter blades, a Banana Roller acts as a web separator, guiding adjacent slit lanes outward into distinct, parallel paths to guarantee clean, cleanly separated wound reels every time.
Problem 3: Uneven Coating, Sizing, and Lamination
If paper enters a sizing press, extrusion coaters, or laminator with micro-creases or non-uniform edge tension, chemical coatings will pool unevenly, resulting in streak marks, bubbles, or rejected finished rolls.
- The Siva Rollers Solution: Our Expander Bowed Rollers ensure the paper web meets the applicator roll at perfectly uniform planar contact, guaranteeing edge-to-edge coating consistency and superior surface quality.
Problem 4: Premature Roll Failure Due to Pulp Dust, Steam, and Chemicals
Paper mills are harsh operating environments. High humidity, elevated temperatures, chemical additives, and airborne pulp fibers quickly penetrate standard roller seals, seizing bearings and ruining roll surfaces.
- The Siva Rollers Solution: Siva Rollers incorporates custom-engineered, multi-lip dust seals and heavy-duty double-shielded bearings lubricated with high-temperature, moisture-resistant greases, dramatically extending operational lifespan and reducing maintenance cycles.
Fixed Bow vs. Variable Bow Rollers: Choosing the Right Setup
Understanding whether your paper machine requires a fixed curvature or an adjustable curvature roller is essential for optimizing line speed and product quality.
FIXED BOW ROLLER VARIABLE BOW ROLLER
(Constant Deflection Arc) (Adjustable Bow & Angle)
+-----------------+ +-----------------+
| Fixed Curve | | Bow Adjustment |
| Heavy-Duty | | Gear Mechanism |
+--------+--------+ +--------+--------+
| |
Continuous Single-GSM Lines Multi-Product / Flexible Lines
1. Fixed Bowed Rollers
- Best For: Dedicated production lines processing uniform paper grades, constant GSM, and stable line speeds (e.g., standard kraft paper production or newsprint).
- Construction: The central shaft is permanently set to a pre-calculated bow curve. It provides maximum structural rigidity, minimal moving parts, and maintenance-free continuous duty.
- Advantage: Highly robust, cost-effective, and engineered for high-speed continuous operation.
2. Variable Curved Bow Rollers (Adjustable Bow)
- Best For: Converting plants, specialty paper lines, and custom slitter-rewinders that handle multiple paper weights, varying widths, or delicate substrates.
- Construction: Features a specialized internal bow adjustment gear mechanism. Operators can manually adjust or mechanically fine-tune both the bow curvature magnitude and the bow direction on-the-fly without stopping the machine line.
- Advantage: Maximum flexibility; allows operators to increase spreading force for heavy paper or dial it back for lightweight, easily torn tissue paper.
Surface Sleeving Options for Paper Industry Applications
The outer sleeve of an Expander Bowed Roller comes into direct contact with the delicate paper web or press felt. Siva Rollers offers customized surface coverings engineered to match specific paper mill zone conditions:
- High-Grade Synthetic Rubber (EPDM / Nitrile / Neoprene): Offers outstanding abrasion resistance, excellent elasticity, and resistance to water, papermaking chemicals, and mid-range heat. Ideal for forming, press, and general converting sections.
- Teflon / Fluoropolymer Sleeving: Provides a non-stick, chemical-resistant surface that prevents adhesive buildup, starch accumulation, and sizing deposits. Perfect for size presses, coater entries, and starch application zones.
- Metallic / Hard Chrome Plated Segmented Sleeves: Constructed with individual precision-machined metal spools running on internal bearings. Designed for ultra-high speed dry paper applications, high-temperature dryer exits, and heavy paperboard winding where rubber sleeves might experience high wear or heat degradation.
Applications Across the Paper Industry
Paper manufacturing involves many different production stages, and each stage presents unique web handling challenges.
Our Bow Rollers for Paper Industry are commonly considered for applications such as:

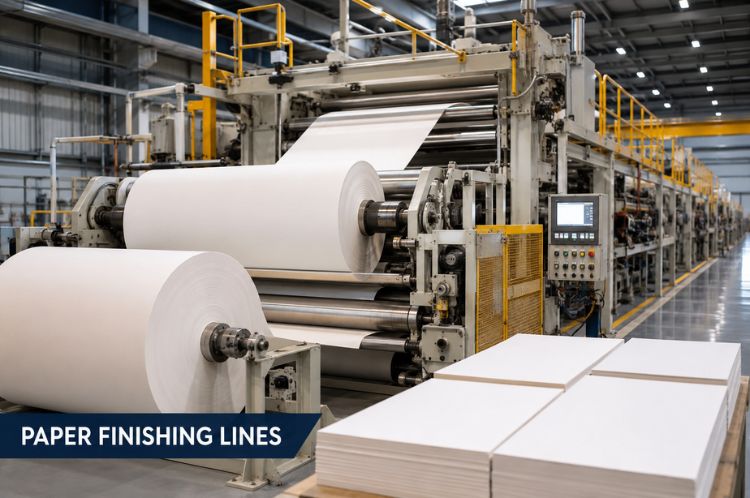

Siva Rollers vs. Standard Market Alternatives
Performance Criteria | Standard Market Bowed Rollers | Siva Rollers Expander Bowed Rollers |
Internal Shaft Deflection Control | Standard commercial steel pipe subject to flex under heavy tension. | Heavy-wall alloy steel stationary shaft engineered specifically for zero sagging across wide faces. |
Sleeve Quality & Bonding | Basic commercial rubber prone to blistering, swelling, or delamination. | Custom-formulated elastomer sleeves bonded using thermal vulcanization for high speed & chemical durability. |
Rotational Torque | High drag resistance; can mark or tear low-GSM papers. | Ultra-low friction bearing alignment allows effortless rotation with delicate, thin paper webs. |
Sealing System | Single rubber lip seal prone to water ingress and early bearing rusting. | Multi-stage labyrinth end seals built to block steam, water washdowns, and papermaking sludge. |
Custom Engineering | Off-the-shelf standard dimensions requiring machine modification. | Built-to-order face lengths, shaft diameters, bow angles, and mounting brackets tailored to your exact machine frames. |
How to Order the Right Bow Roller
To ensure your replacement or OEM Bowed Roller performs perfectly from day one, provide our engineering team with the following operational details when requesting a quote:
STEP-BY-STEP SELECTION CHECKLIST
[1] Web Specifications --> Width, Material Type, Basis Weight (GSM)
[2] Machine Parameters --> Line Speed (m/min), Operating Tension, Wrap Angle
[3] Operating Environment --> Temperature, Moisture/Chemical Exposure
[4] Structural Mounts --> Face Length, Overall Length, Shaft Diameters
[5] Adjustment Preference --> Fixed Bow Angle vs. Variable Adjustable Bow
- Paper Specifications:
- Paper Type (Kraft, Duplex Board, Tissue, Writing/Printing Paper, Specialty Coated).
- Basis Weight / Thickness range (GSM).
- Machine Parameters:
- Maximum and minimum web widths (mm).
- Maximum operating machine speed (meters per minute).
- Web tension range (kg/cm or N/m).
- Wrap angle (typically between 15 °C & 180 °C).
- Environmental Conditions:
- Operating temperature at the roller location.
- Chemical exposure (alkalies, acids, moisture, sticky sizing, starch).
- Dimensional Requirements:
- Roller Face Length (mm).
- Total Shaft Length and Shaft Extension End Details (mm).
- Preferred Mounting Style (Pedestal Wall Mounting or Foot Mounting Bracket).
- Adjustability Preference:
- Fixed Bow Roller or Variable Curved Bow Roller with gear adjustment mechanism.
Installation & Alignment Guidelines for Maximum Performance
Proper installation is crucial for maximizing wrinkle removal and ensuring long sleeve life. Follow these expert recommendations from the Siva Rollers engineering team:
ORRECT WEB ENTRY & EXIT PATH
Paper Web Entry
\
\
+-----+
/ | BOW | \ (Spreading Arc)
/ +-----+ \
/ \
Paper Web Exit
- Lead-in and Lead-out Distances: For maximum spreading efficiency, maintain a lead-in distance (distance from the preceding guide roll to the bowed roll) equal to or greater than twice the web width. The lead-out distance to the next roll should ideally be shorter to lock in the spread condition.
- Bow Direction Alignment: The apex (peak) of the bow curve must point toward the direction of web travel and be bisected across the wrap angle. Misaligning the bow direction can cause web tracking issues or aggravate wrinkles instead of removing them.
- Mounting Brackets: Always secure the roller using rigid, heavy-duty mounting brackets (pedestal or foot-mounted) supplied or verified by Siva Rollers to prevent frame deflection during high-tension runs.
- Routine Lubrication Maintenance: Ensure grease points on variable gearboxes and end housings are serviced at recommended intervals using high-temperature, moisture-resistant industrial grease.
The Value of Upgrading to Siva Bow Rollers
Investing in high-precision Expander Bowed Rollers from Siva Rollers delivers immediate, measurable financial returns for paper manufacturers and converters:
- Drastic Reduction in Scrap Material: Eliminating web creasing and edge folding prevents entire parent rolls from being rejected or downgraded to lower-value stock.
- Higher Machine Throughput: Smooth, predictable web handling allows operators to run paper machines at full rated speed without fear of unexpected web breaks or wrinkles.
- Extended Machine Component Lifespan: Balanced rollers reduce wear on adjacent machinery bearings, drive shafts, and slitter knife blades.
- Rapid Payback Period: In most high-capacity paper mills, the cost of a custom Siva Bowed Roller is fully recouped within weeks by preventing a single major web-break downtime event or roll rejection batch.
Why Leading Paper Mills Partner with Siva Rollers
As an established industrial roller manufacturer based in Ahmedabad, Gujarat, Siva Rollers has earned a reputation for quality engineering, fast turnaround times, and practical web-handling solutions.
- Decades of Manufacturing Experience: Deep understanding of paper mill web handling, converting challenges, and polymer engineering.
- Custom Engineering Focus: Every bowed roller is tailored to your exact machine dimensions, web tension requirements, and space constraints—no forced standard sizing.
- Rigorous Quality Testing: Every roller undergoes static and dynamic balancing, rotational torque testing, and sleeve concentricity checks before leaving our factory.
- Competitive Lead Times & Support: Direct manufacturer pricing, rapid delivery schedules across India and internationally, and accessible technical guidance.
Ready to Eliminate Paper Web Wrinkles and Boost Production Speed?
Stop letting web wrinkles, sheet breaks, and slit interleaving compromise your paper mill productivity. Upgrade your machine runs with custom-engineered Bowed Rollers from Siva Rollers.
Our technical team is ready to analyze your web line layout, calculate the required bow curvature, and deliver a long-lasting expander roller solution built for your production goals.
Call Us: +91 75070 10009
Email Us: info@sivarollers.com
Take the Next Step Toward Defect-Free Production
Siva Rollers
Industrial Roller Manufacturer | Ahmedabad, Gujarat, India
Expert Web Spreading Solutions for Paper, Converting, Film, and Textile Industries.
FAQs
A Bowed Roller—also commonly referred to as a Banana Roller or Expander Bowed Roller—is a specialized curved roller consisting of a stationary curved inner axle and a flexible, rotating outer sleeve.
It eliminates wrinkles and web defects by exerting an outward lateral spreading force across the traveling paper web. As the paper wraps around the curved stationary shaft, the rotating outer sleeve stretches the paper sheet uniformly from the center toward both outer edges. This lateral expansion balances tension, flattens baggy centers, and ensures 100% crease-free web movement.
The key difference between a Fixed Bow Roller and a Variable Bow Roller lies in curvature adjustability and operational flexibility:
- Fixed Bow Roller: Features a factory-set, non-adjustable curve on a heavy-duty stationary shaft. It is ideal for dedicated, continuous paper production lines running uniform paper grades, constant basis weights (GSM), and stable machine speeds (e.g., standard kraft paper or newsprint lines).
- Variable Bow Roller (Adjustable Bow): Equipped with an internal gear mechanism that allows operators to adjust both the bow magnitude (curvature depth) and bow direction on-the-fly without stopping the line. It is designed for multi-product converting plants, specialty paper lines, and custom slitter-rewinders handling varying paper weights, widths, or delicate tissue papers.
During high-speed slitting operations, adjacent slit paper lanes can drift laterally and overlap or interlock during rewinding.
When installed immediately downstream of the slitter blades, a Siva Rollers Expander Bowed Roller acts as a web separator. Its outward arc deflection guides adjacent slit paper strips along slightly outward, diverging parallel paths, maintaining precise lane separation and preventing edge collisions or roll interleaving.
Siva Rollers provides three primary surface covering options customized for specific paper processing zones:
- High-Grade Elastomer / Rubber Sleeves (EPDM, Nitrile, Neoprene, Silicone): High elasticity and chemical/abrasion resistance. Ideal for forming, press felt, and general converting sections.
- Teflon / Fluoropolymer Sleeving: Non-stick, anti-adhesive coating that prevents starch, sizing, and chemical glue buildup. Recommended for size presses, coaters, and starch application zones.
- Metallic / Hard Chrome Plated Segmented Sleeves: Precision-machined metal spools running on individual internal bearings. Engineered for high-speed dry paper lines, high-temperature dryer exits, and heavy paperboard winding where rubber might degrade due to heat or wear.
Siva Rollers engineers dynamically balanced Bowed Rollers capable of operating smoothly without vibration, wobble, or heat buildup at high machine speeds up to and exceeding 1500 m/min. Precision dynamic balancing ensures stable web control and prolonged bearing life on high-speed paper machinery.
Paper mill environments subject machinery to pulp dust, high humidity, steam, and chemical additives. Siva Rollers protects its bowed rollers using:
- Multi-stage labyrinth end seals and multi-lip dust rings that block steam, water washdowns, and pulp sludge.
- Heavy-duty, double-shielded internal bearing assemblies.
- High-temperature, moisture-resistant industrial synthetic greases to ensure maintenance-free, continuous operation.
Expander Bowed Rollers are crucial across multiple paper manufacturing, converting, and processing applications, including:
- Paper Machine Dryers & Press Sections: Keeping felts and paper sheets flat and tracking straight.

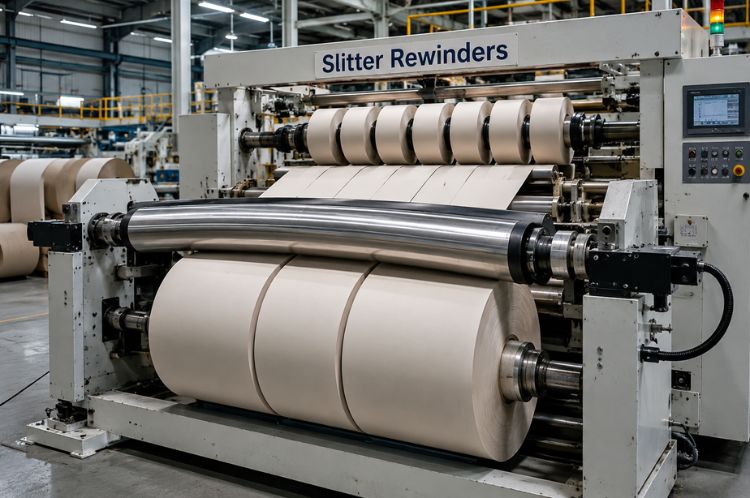

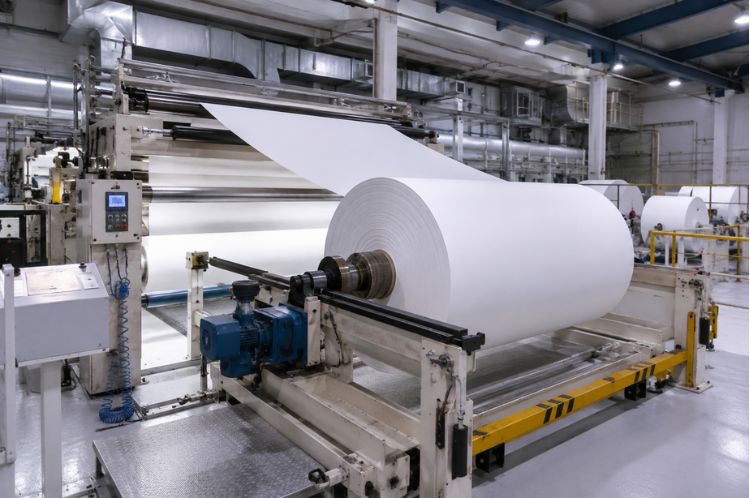

- Slitter-Rewinders: Separating slit strips to avoid interleaving.

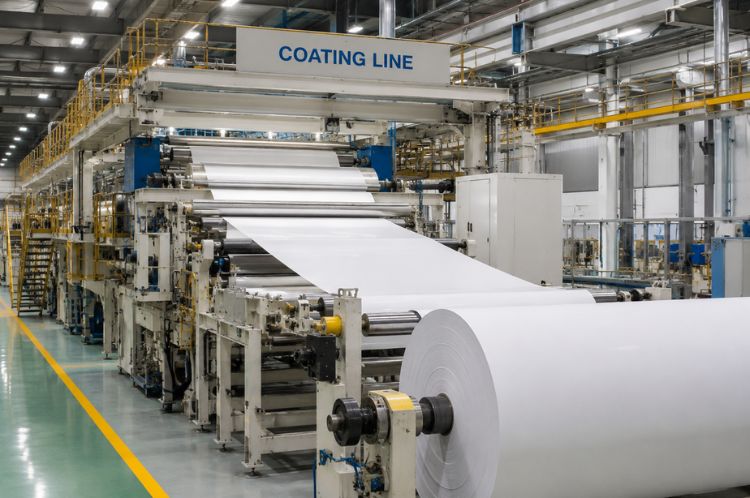

- Size Presses & Coating Lines: Eliminating micro-creases before chemical application for even coating distribution.

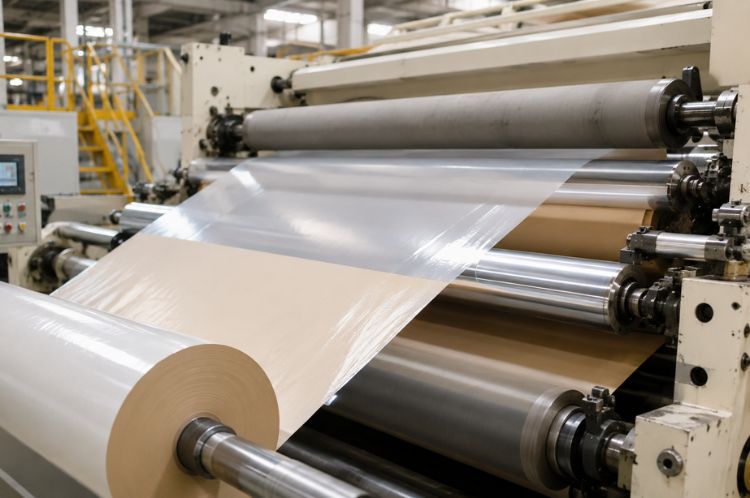

- Laminators & Extruders: Ensuring flat web entry for defect-free lamination.

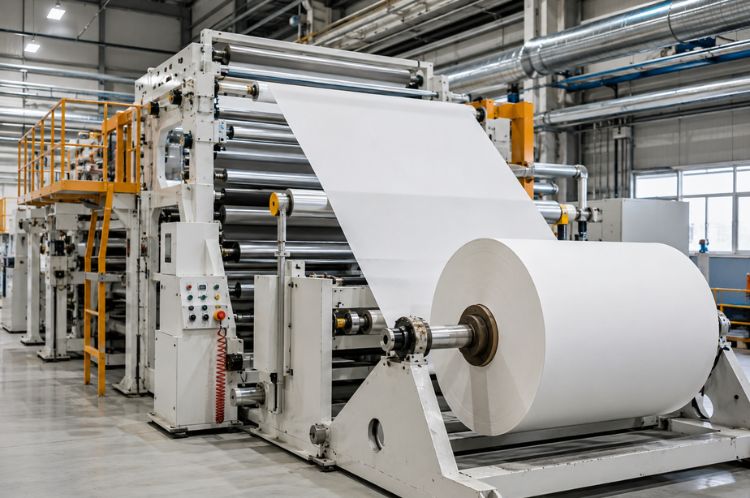

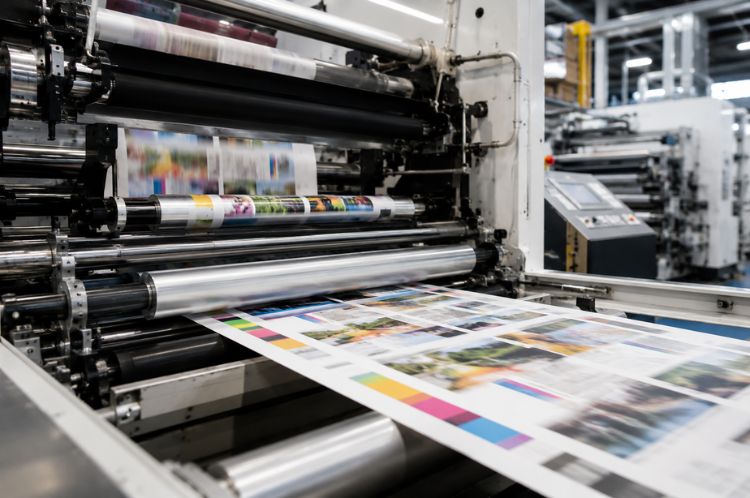

- Printing Presses & Converting Equipment: Preventing sheet jams, diagonal creases, and misregistration.
To design and manufacture an optimal Bowed Roller tailored to your production line, provide the following specifications:
- Paper Characteristics: Paper type (Kraft, Tissue, Duplex Board, Fine Paper), GSM / thickness, and web width (min/max).
- Machine Parameters: Operating line speed (m/min), web tension range (N/m or kg/cm), and wrap angle (typically between 15 °C and 180 °C ).
- Environment Conditions: Temperature, moisture levels, and chemical exposure (alkali, acid, starch).
- Dimensions & Mounts: Face length (mm), overall shaft length (mm), and mounting style (pedestal wall mount or foot bracket).
- Adjustability Type: Fixed Bow vs. Variable Curved Bow (gear adjustable).
For maximum web spreading efficiency and wrinkle removal:
- Lead-in Distance: The distance from the preceding guide roller to the Bowed Roller should ideally be equal to or greater than twice the web width/
- Lead-out Distance: The distance from the Bowed Roller to the subsequent process roll should be kept as short as structurally possible to lock in the spreading effect before the web undergoes further processing.
The apex (peak of the curve) of the Bowed Roller must point in the direction of web travel and precisely bisect the total wrap angle formed by the paper web. Misaligning or reversing the bow direction can cause severe tracking errors or worsen web wrinkling instead of eliminating it.
Siva Rollers offers key technical advantages over standard commercial alternatives:
- Zero Deflection Shafts: Built with heavy-wall alloy steel stationary inner shafts engineered against sagging, unlike standard commercial pipe axles.
- Low Rotational Torque: Ultra-low friction bearing alignment allows effortless rotation, preventing marking or tearing on lightweight or low-GSM paper grades.
- Superior Vulcanization: Elastomer sleeves are thermally vulcanized directly to the spool core to prevent blistering, swelling, or delamination.
- Custom Engineering: 100% custom-built to match exact machinery frame dimensions, eliminating the need for expensive line modifications.
Upgrading to precision-engineered Siva Bow Rollers provides an immediate financial return by:
- Reducing Scrap & Reject Rates: Preventing permanent web creases, baggy centers, and edge folds that cause finished roll rejections.
- Eliminating Downtime: Preventing high-speed paper sheet breaks caused by uneven stress across the sheet width.
- Increasing Production Speed: Allowing machinery to operate at maximum rated speeds without fear of web handling defects.
- Rapid Payback: Most high-capacity paper mills fully recoup the investment cost within weeks by preventing a single major web break or roll rejection event.
