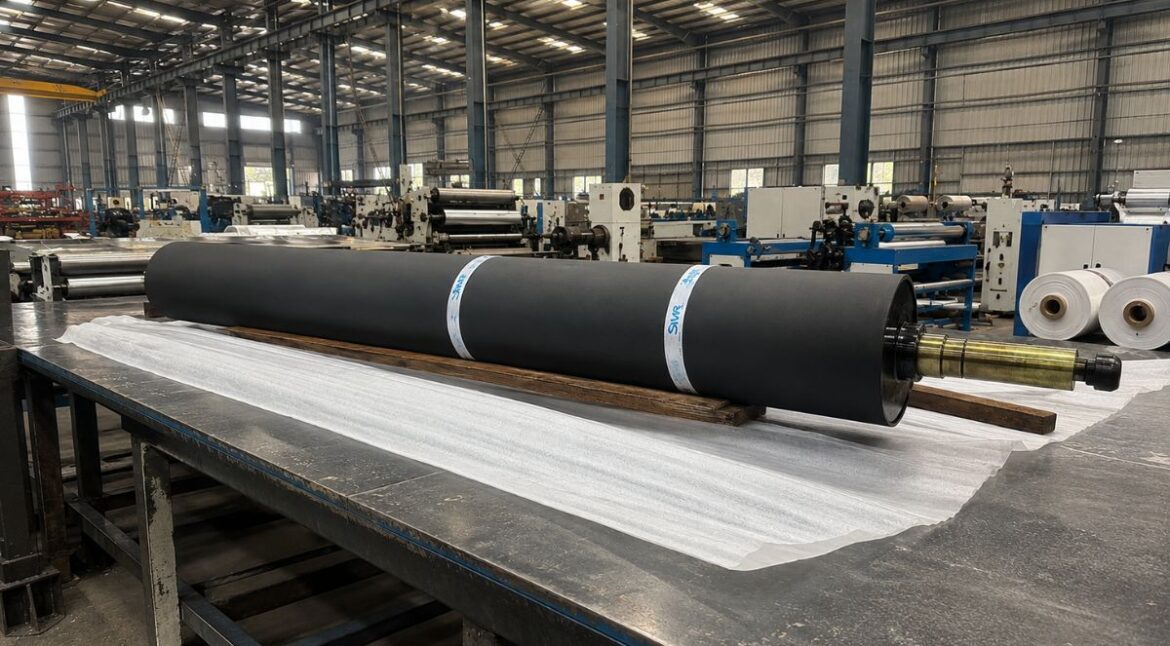

How to Choose the Right Rubber Hardness (Durometer) for Printing Rollers?
In the high-precision world of industrial printing, minor calibration details dictate the line between a flawless, high-speed production run and an expensive, ink-spattering shutdown. Among these variables, none plays a more foundational—yet frequently misunderstood—role than the hardness of your printing rollers, scientifically measured as “Durometer.”
Whether you are running high-speed offset lithography, flexographic packaging lines, or gravure presses, selecting the precise durometer of your printing rubber rollers directly impacts ink film thickness, machine wear, and overall profitability.
As a leading global printing rollers manufacturer in India, Siva Rollers has engineered high-performance elastomer coverings for decades. This guide provides the practical, pressroom-tested insights you need to evaluate, select, and maintain the perfect rubber hardness for your specific machinery and substrates.
Understanding Durometer in Printing Rollers
To make informed purchasing and operational decisions, we must first look at how rubber hardness is defined and measured on the production floor.
Durometer is the international standard used to quantify the resistance of an elastomeric or polyurethane material to surface penetration. Named after Albert Ferdinand Shore, who developed the Shore scleroscope in the 1920s, the measurement utilises a calibrated spring-loaded indenter. When this indenter is pressed against the rubber surface, the depth of the indentation yields a numerical value between 0 and 100.
For the vast majority of Rollers for Printing Industry applications, we utilise the Shore A scale.
- Lower Shore A values (e.g., 15 to 35 A): Represent highly flexible, compliant, and soft compounds (similar to rubber bands or soft erasers).
- Medium Shore A values (e.g., 40 to 65 A): Represent balanced, resilient elastomers (similar to car tyre treads).
- Higher Shore A values (e.g., 70 to 90+ A): Represent dense, rigid, and highly durable polymers (similar to shopping cart wheels or hard shoe soles).
When selecting industrial roller components, it is important to understand that ASTM standards typically permit a manufacturing tolerance of ±5 points from the specified hardness level. However, an experienced Industrial Roller Manufacturer can achieve tighter tolerances, such as ±3 or even ±2 points, for high-precision applications where small hardness variations can significantly impact critical processes like ink-water balance and overall production accuracy.”
Why Durometer Matters for Rollers for Printing Industry
Selecting the correct durometer is not merely about mechanical fit; it is about managing the physics of the “nip”—the point of contact where two rollers meet under pressure. The hardness of the rubber directly governs several critical press dynamics:
1. Ink Transfer Efficiency and Film Consistency
The primary job of an inking roller is to split and transfer a uniform, microscopic film of ink. A roller with the correct Shore A hardness conforms perfectly to the mating surface (be it a metal oscillator, a plate, or the substrate itself) without distorting. If the rubber is too hard, it cannot achieve the continuous, micro-level contact required to transfer ink smoothly, resulting in a patchy or “starved” print.
2. Substrate Adaptability
Not all print media are perfectly flat. Uncoated papers, recycled boards, textured packaging materials, and corrugated liners feature microscopic valleys and ridges. Softer rubber rollers deform easily, allowing them to press ink deep into these recessed fibers. Conversely, rigid, high-durometer rollers are ideal for perfectly flat, non-porous films and foils, where high pressure can be applied without causing the roller surface to sag or spread.
3. Thermal Management and Lifespan
As a roller rotates under pressure, the rubber continuously compresses and decompresses. This cyclical mechanical deformation generates internal friction, a phenomenon known as hysteresis, which produces heat. Soft compounds under high pressure generate substantial heat. If the press runs at high speeds, this heat can degrade the polymer chain, leading to premature cracking, swelling, and total roller failure. Harder compounds resist this deformation, running cooler but transferring less shock absorption to the system.
4. Vibration and Noise Reduction
High-speed press runs are prone to mechanical resonance and vibration, which manifest as horizontal streaks (gear marks or banding) on the finished print. Properly formulated elastomer coverings act as industrial dampeners, absorbing these micro-shocks. Balancing the hardness ensures that the roller acts as a cushion without introducing structural instability.
The Consequences of Getting the Durometer Wrong
On a busy factory floor, identifying a durometer issue early can save hundreds of thousands of rupees in wasted substrate, ink, and downtime. Here is what happens when the hardness of your printing rubber rollers is misaligned with your process:
Scenario A: The Roller is Too Soft
When a roller is softer than the manufacturer’s specification, it over-deforms under typical operating pressure.
- The “Nip Width” Explodes: The contact area becomes too wide. This causes the roller to slide or scrub against the plate rather than roll smoothly, resulting in rapid plate wear and blurred image boundaries.
- Extreme Dot Gain: The excessive pressure squeezes the halftone dots, causing them to spread out and darken the final image.
- Chemical Vulnerability: Softer rubber compounds generally have a more open polymer matrix, making them highly susceptible to solvent absorption. This leads to rapid swelling, sticky surfaces, and permanent physical distortion.
Scenario B: The Roller is Too Hard
When a roller is too rigid, it behaves more like metal than elastomer.
- Slip and Banding: The roller loses its grip on the driver or metal oscillator. Instead of consistent rotation, it slips, creating noticeable horizontal bands and uneven ink density across the sheet.
- Accelerated Plate and Gear Wear: Because the roller cannot cushion mechanical force, excess pressure is directed entirely onto the expensive printing plates, sleeves, or press bearings, causing premature wear.
- Inability to Meter: In dampening or coating systems, a hard roller cannot wipe or meter the fluid accurately, resulting in flooding or starvation of the printing plate.
Selection Guide: Choosing the Right Shore A Hardness by Print Process
Different printing technologies impose entirely different physical demands on printing rollers. Here is a practical breakdown of how durometer selection varies across the major printing methods.
1. Offset Lithography
Offset presses rely heavily on maintaining a strict balance between oil-based ink and water-based dampening solutions. This process utilizes a complex train of rollers, each requiring a highly specific durometer.
- Dampening / Metering Rollers (18 to 25 Shore A): These rollers must be exceptionally soft and hydrophilic. A soft elastomer allows the press operator to adjust the nip width with high precision, ensuring a thin, uniform film of fountain solution is delivered to the plate without flooding.
- Inker Distributors (35 to 45 Shore A): Operating in the middle of the ink train, these rollers must split the ink film repeatedly. A medium durometer provides the perfect balance of chemical resistance and resilience to handle continuous shearing forces.
- Form Rollers (25 to 35 Shore A): As the final rollers that apply ink directly to the printing plate, they must be gentle. A soft-to-medium durometer ensures they transfer ink smoothly without damaging the delicate plate emulsion.
2. Flexographic Printing
Flexography, widely used in the packaging industry, relies on low-pressure printing using flexible relief plates and liquid inks.
- Plate Mounted / Sleeve Systems: Flexo plate materials are elastomeric, meaning the backing and impression rollers must be carefully matched.
- Impression Rollers (70 to 85 Shore A): The impression roller supports the substrate from behind as it contacts the plate. It must be hard and structurally stable to maintain precise, high-pressure contact across wide webs, especially when printing on plastic films or paperboards.
- Squeeze / Fountain Rollers (50 to 60 Shore A): For older two-roller systems, a medium-hard rubber roller transfers ink from the fountain to the anilox roll, squeezing out excess ink along the way.
3. Gravure Printing
Gravure printing uses engraved cylinders to transfer high-viscosity inks directly onto the substrate at incredible speeds.
- Impression Rollers (65 to 90 Shore A): Gravure requires extreme pressure to draw ink out of the microscopic cells of the engraved cylinder. Consequently, gravure impression rollers are clad in highly durable, hard synthetic rubbers or polyurethanes. They must withstand immense linear pressure without deflecting or generating destructive heat.
How Operating Factors Shift Your Durometer Requirements
A common mistake in the printing industry is choosing a roller based strictly on a standard datasheet without evaluating the actual environment of your production floor. When you partner with Siva Rollers, we help you analyze these three critical operational variables:
1. Operating Speed and Thermal Fluctuations
At high press speeds (measured in meters per minute), the rapid compression cycles of the rubber generate heat. If your press regularly runs at high speeds, you may need to specify a slightly harder durometer (e.g., shifting from a 35 to a 40 Shore A) or select a highly specialized polyurethane compound. Polyurethanes generally exhibit much lower hysteresis (heat buildup) than traditional nitrile rubbers, allowing them to maintain their structural integrity at extreme speeds.
2. Chemical Exposure and Ink Systems
The chemistry of your inks and cleaning solvents is the single biggest threat to your roller’s durometer.
- UV-Cured Inks: These inks contain aggressive monomer solvents that quickly extract plasticizers from standard rubber rollers, causing them to shrink, dry out, and harden over time.
- Solvent-Based Inks (Ethyl Acetate, Toluene): Commonly used in gravure and flexo packaging, these solvents cause standard rubbers to swell and soften rapidly.
- Siva Rollers Solution: As an experienced Industrial Roller Manufacturer, we customize our elastomer recipes. We utilize EPDM for UV-ink environments, Nitrile (NBR) for conventional oil-based inks, and high-grade Polyurethanes for solvent-based packaging applications, ensuring the durometer remains stable from day one to year three.
3. Substrate Irregularities
If you are printing on rough, uneven materials like craft paper, corrugated board, or coarse textiles, you must opt for a softer durometer. The rubber must physically conform to the microscopic profile of the material. If you are printing on premium, ultra-smooth PET, BOPP, or metalized foils, a harder, high-precision roller is required to avoid distorting the film under tension.
Measuring Your Printing Rubber Rollers Correctly
To protect your investment and maintain consistent quality, your maintenance team must know how to measure durometer accurately on the shop floor. Incorrect measurement techniques lead to false diagnoses and wasted resources.
The 1/4-Inch Depth Rule (ASTM D2240)
To get an accurate durometer reading, the rubber layer being tested must be at least 0.25 inches (approx. 6.4 mm) thick. If the rubber coating on your steel roller core is very thin (e.g., 1/8 inch), the durometer’s indenter probe will penetrate the rubber and feel the underlying rigid steel core. This will result in an artificially high hardness reading. Always take the thickness of your roller covering into account when assessing wear.
Alignment of the Durometer Tool
The base of the handheld durometer must be placed perfectly parallel to the longitudinal axis of the roller. If you tilt the tool or hold it perpendicular to the curve of the cylinder, the indenter will slide, providing a completely inaccurate, lower reading.
Temperature Calibration
Always measure hardness at standard room temperature (approximately 23°C or 74°F). If you measure a roller immediately after a long press run while it is still hot, the elastomer will naturally read softer than its calibrated room-temperature specification.
Siva Rollers: Your Trusted Global Industrial Roller Manufacturer
Choosing the perfect durometer is a science that blends chemical engineering with years of hands-on pressroom experience. At Siva Rollers, we don’t just supply rollers—we deliver customized engineering solutions designed to optimize your press performance.
Operating from our state-of-the-art manufacturing facilities in India, we have established ourselves as a premier printing rollers manufacturer with a robust global export network. Whether your printing facility is in Chennai, New Delhi, Europe, the Middle East, or the Americas, we build and ship high-performance rollers tailored to your exact local environmental conditions and press demands.
Why Global Printers Partner with Siva Rollers:
- Custom Elastomer Compounding: We formulate our own rubber and polyurethane compounds in-house. This allows us to lock in precise durometer ratings, high chemical resistance, and low heat buildup.
- World-Class Tolerance Control: Using precision CNC grinding and state-of-the-art balancing equipment, we ensure that every roller meets strict concentricity and dimensional specifications.
- On-the-Ground B2B Expertise: Our technical engineers work directly with your pressroom managers to analyze your ink systems, speed, and substrates, matching your equipment with the perfect Shore A rating.
- Global Export Capability: From secure, sea-worthy packaging to seamless customs clearance, we ensure your replacement rollers arrive at your international facility on time, minimize shipping risks, and are ready for immediate installation.
Optimize Your Pressroom Performance Today
A minor shift in your roller’s durometer can be the difference between high-volume waste and a pristine, high-speed print run. Stop guessing when it comes to your rubber hardness specifications. Let our team of polymer scientists and printing industry experts help you select the exact compound for your machinery.
Contact Siva Rollers today to discuss your custom durometer requirements, request an engineering audit of your current rollers, or get a competitive quote for your next production batch.
Contact Us
Emial : info@sivarollers.com
Phone Number :
FAQs
Rubber roller swelling occurs when incompatible chemicals, solvents, oils, or cleaning agents penetrate the rubber compound and are absorbed into its structure. This causes the roller to expand, soften, lose dimensional accuracy, and eventually fail.
Durometer determines how soft or hard the rubber surface is, which directly affects ink transfer, pressure distribution, heat generation, vibration control, and roller lifespan. Incorrect durometer selection can cause poor print quality, excessive wear, and costly machine downtime.
For offset printing applications, the recommended hardness usually is:
- 18–25 Shore A → Dampening rollers
- 25–35 Shore A → Form rollers
- 35–45 Shore A → Ink distributor rollers
The correct hardness helps maintain proper ink-water balance and precise ink transfer during high-speed printing.
If a printing roller is too soft:
- The contact area (nip width) becomes too large
- Excessive dot gain affects print sharpness
- The roller may wear faster under pressure
- Solvents can cause swelling and distortion
Soft rollers can reduce production accuracy and increase maintenance costs.
If a printing roller is too hard:
- Ink transfer becomes uneven
- Roller slipping can create print banding
- Printing plates wear out faster
- Dampening systems may flood or starve
Hard rollers reduce flexibility and can damage expensive printing equipment over time.
High-speed printing creates heat due to constant rubber compression. Faster machines usually require slightly harder rubber compounds or polyurethane rollers because harder materials reduce heat build-up and improve long-term durability during continuous production.
Different printing inks require different roller compounds:
- Nitrile (NBR) → Oil-based inks
- EPDM Rubber → UV-cured inks
- Polyurethane (PU) → Solvent-based printing applications
Choosing chemical-resistant materials helps maintain a stable durometer and extends roller life.
To measure printing roller hardness correctly:
- Use a Shore A durometer tester
- Ensure rubber thickness is at least 6.4 mm (¼ inch)
- Keep the measuring tool parallel to the roller surface
- Measure at standard room temperature (23°C)
Accurate measurement prevents incorrect maintenance decisions.
Different substrates require different hardness levels.
- Soft rollers → Corrugated board, recycled paper, textured surfaces
- Hard rollers → PET films, BOPP films, foils, smooth packaging materials
The roller must match the substrate surface to ensure uniform ink coverage and consistent printing quality.
Siva Rollers specializes in manufacturing high-performance industrial printing rollers with custom durometer specifications for offset, flexographic, gravure, and packaging industries.
Key advantages include:
- Custom rubber compounding
- Precision hardness tolerance control (±2 to ±3 Shore A)
- Chemical-resistant elastomer solutions
- Global export capability
- Customized roller engineering for specific machines
This helps manufacturers improve print quality, reduce downtime, and increase production efficiency.
Siva Rollers specializes in custom-engineered industrial rubber rollers designed for demanding chemical environments. With advanced material selection, in-house testing, precision manufacturing, and global export capabilities, Siva Rollers helps industries reduce downtime, improve roller life, and maintain consistent production quality.
